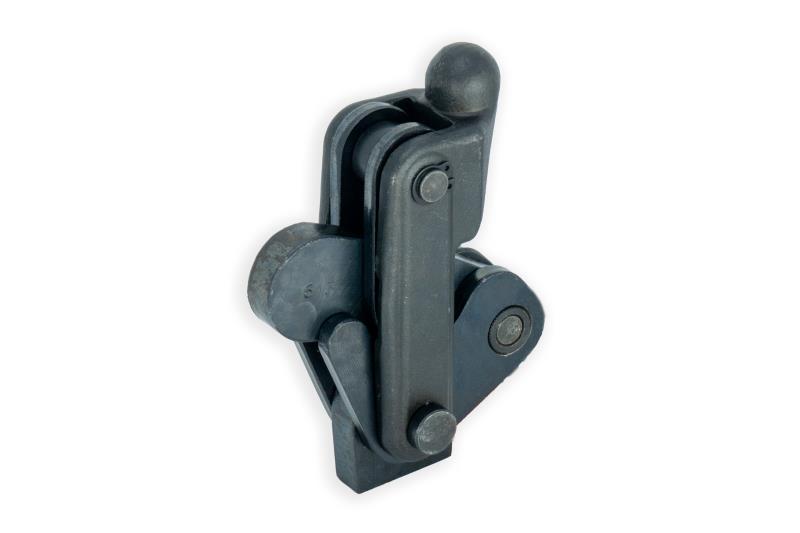

Svislá těžká přesná upínka 613

These clamps feature great clamping strength and a long service life. The working of individual parts which are made of fine materials, grinded and quenched corresponds accordingly. These clamps are typically applied in car industry where they are utilized in heavy-duty welding and milling jigs. Parts for the assembly, i.e. clamping arm, basic plate and handle are referred to on the page no 63. These clamps differ from the types 60x by a swinging leg that enables to adjust a working angle of the clamp as needed. The position is to be arrested by welding up.

• Angle of opening: 210°
• Weight: 685 g
• Max clamping force: 7000 N
